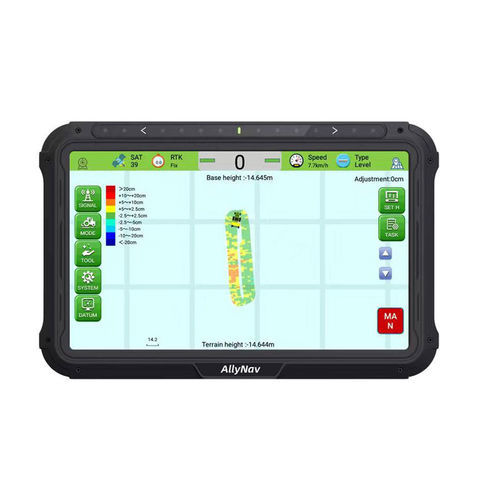

Field grading control system W20RTKdigital
Add to favorites
Compare this product
Characteristics
- Application
- for field grading
- Network
- RTK
- Other characteristic
- digital
Description
Embedded with high precision GNSS module, providing ±2.5cm precision level slop leveling.
Display: 10.1 inch, multi-point capacitive screen
Resolution: 1024*600
Brightness: 750nits
CPU: ARM Cortex-A7, 1.5GHz
RAM/ROM: 2G/16G
Communication interface: USB, CANBus, Serial, LTE
Wireless communication: dual 4G, WIFI, Bluetooth
System: Android 6.0
Protection level: IP67
High Precision Controller
Receive tablet control signal and output control solenoid valve signal.
Communication interface: CAN
Input control: 2-way analog (voltage)
Output control: 2 channels (switch signal/PWM)
Working voltage: 9～30V DC
Protection level: IP67
Physical size: 120×81×34mm (without cable)
HD Camera
Visible working footprint and topographic map. Increase 30% leveling efficiency.
