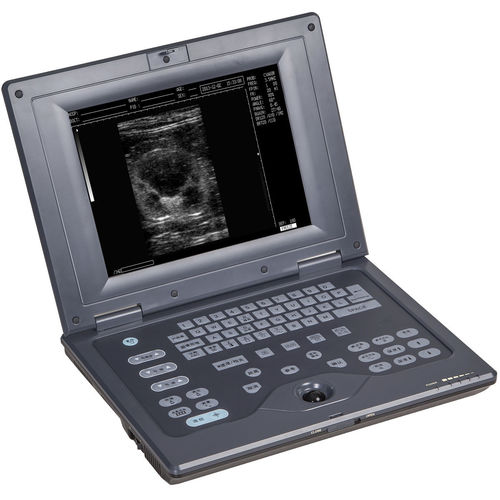

Portable veterinary ultrasound system WED-2018V

for small animalsfor large animalslinear

Vet Notebook B-Ultrasound Diagnostic System Clinical application For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals Main Unit Parameters Cine-loop:≥500 frames Display Depth:≥240mm; 16 levels are adjustable Display Mode:B, B+B, B+M, B+M/M, M, and 4B Focus Adjustment:Focus Number, Focus Distance, Focus Position Image Reversal:Up and down, Left and Right, Black and White Image Processing:Image Smoothing/Sharpening, tissue harmonic, Gamma Correction, Histogram,Pseudo-color Real-time Depth:16 levels; Zoom Measurement:Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, sheep, pigs, cats and dogs etc.) Battery Capacity:≥4400mAh Features · WED-2018 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies and so onAll these technologies can endure its image with clarity, stability and high resolution in the wide medical screen. · Combined power supply mode of AC adapter and built-in chargeable battery, 3 battery charging modes and the low power consumption and advanced power management technology promise more lasting battery operation. The handle structure and plastic injection model make whole units be small volume and light weight, so it can satisfy out door diagnosis.
