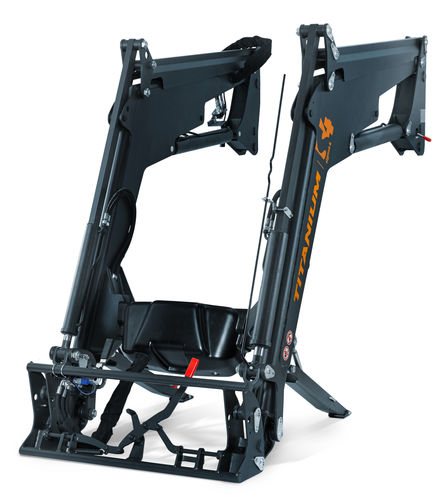

High-duty front end loader which combines power with technologically advanced solutions, the ideal mix of lifting force and fully-accessorised equipment for the professional users. All hydraulic pipes are covered by protection plates which protect them completely. The plates can be easily removed in case of need while servicing pipes. Thanks to this equipment visibility is highly improved and dirt/residue accumulation on the pipes is prevented.
BOOM SECTION
The boom section is mono-bloc, that is consisting of a single metal sheet duly bent and welded only in the lower area to form a solid structure which is robust and “light” at the same time, as well as nicely finished.
Front loader with mechanical self-levelling (M), hydraulic self-levelling (H) of the implement:
- Fitting brackets supporting loader from tractor front end to rear axle shafts
- Hydraulic system conforming to tractor specifications
Standard equipment
- Two double acting cylinders for lifting
- Two double acting cylinders for the operation of the implement
- Quick-release of loader from tractor: VELOTAK
- Implement quick release: EURO 8
- Only for mechanical self-levelling: PUSH/PULL quick couplings
- Only for hydraulic self-levelling: FLASH quick couplings
- Hydraulic distributor with anti-shock valve
- Adjustable support legs
- Bucket level gauge
- Joystick TC BASIC
- For mechanical self-levelling only: cover casing for tie rods
- Front loader shock absorber: NEBULA
Models available
- Series 20
- Series 30
- Series 40
- Series 50
- Series 60 (only for hydraulic self-levelling)
