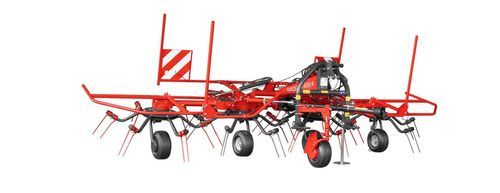

Mounted rotary tedder SPIDER 455|4

foldingwith hydraulic adjustment

The four-rotor tedders SPIDER 455 | 4 are versatile machines. Their robust design and exceptional manoeuvrability enable precise and even spreading on slopes or near the edges as well as easy transport. PIVOTING LINKAGE The pivoting linkage with stabilisers allows the tedder to follow the tractor easily. SPRING TINE HOLDERS The spring tine holders are made of highly resistant and robust round tubes. The lower ring on the rotor offers additional reinforcement. DIFFERENT LENGTH OF SPRING TINES The spring tines of different lengths prevent ground scratching and forage contamination with soil or sand. The protection at the end of the holder prevents the loss of spring tines in case of breakage and the appearance of metal parts in the forage, thus protecting other harvesting machines from damage. HOOK SPRING TINES The hook shape of the spring tines (optional) allows the lifting of forage in two layers, which increases the spreading efficiency on tedder models with a larger rotor diameter. HYDRAULIC STEERING (HS) All models from the ROBUST line are equipped as a standard with central hydraulic wheel shift HS for spreading along the edges. WHEELS ADJUSTMENT Wheels with quick height and spreading angle adjustment. SPREADING ANGLE ADJUSTMENT By setting the spreading angle from 12° to 18°, the spreading pattern can be adjusted to the quantity and moisture of forage. HYDRAULIC ROTOR LIFT Hydraulic lift of rotors for smooth and fast folding. Attributes No. of spring tines per rotor:6 Rotor diameter:1.60 Rotor rotation speed:175 PTO rotation speed:450 - 540 Weight:425 Required Tractor power:15/20 Capacity:4.50
