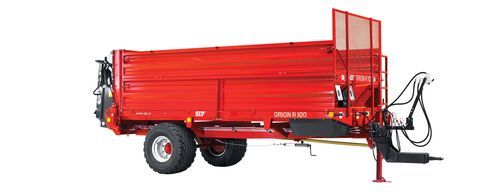

Towed manure spreader ORION 100

verticals beaterssingle-axle

The manure spreader ORION 100 with a total weight of 10 tons, combines high durability, reliability, and ease of use. Continuously adjustable hydraulic control of the scraper floor allows complete spreading control. Spreading beaters made of very resistant material enable fine crushing and spreading of manure. Therefore, the spreader is also suitable for spreading on the meadows. ORION 100 is distinguished by a well-thought design of the hydraulic system. The dosing wall in front of the beaters is hydraulically adjustable in height, and hydraulic protection of the spreading device is available as standard. The sophisticated hydraulic system allows easy operation from the tractor cab. V-CHASSIS V-shaped chassis for better stability. CENTRAL LUBRICATION SYSTEM The central lubrication system enables simple and quick maintenance. VERTICAL SPREADING DEVICE Vertical spreading device with four spreading beaters equipped with easily replaceable segments made of wear-resistant HARDOX steel. HYDRAULIC DRIVE OF SCRAPER FLOOR The hydraulic drive of scraper floor and chain conveyor with of 4 chains dim. 11 × 31 mm. Forward and backward motion of the floor chain conveyor and other functions can be controlled from the tractor cabin. HAND BRAKE Hand brake with release by brake lever. PRACTICAL USE The spreading device can be easily removed and the spreader can be used as a classic trailer. Attributes Max. total mass:10000 Weight:2700 - 3200 Loading capacity:6800 - 7300 Max. length:6.65 Max. width:2.23 Max. height:2.90 Height of sides:0.60 Max loading surface:8.74 (4.60 x 1.90) Max loading volume-with sides:14.00 Drawbar load:1600 Required Tractor power:60/80
