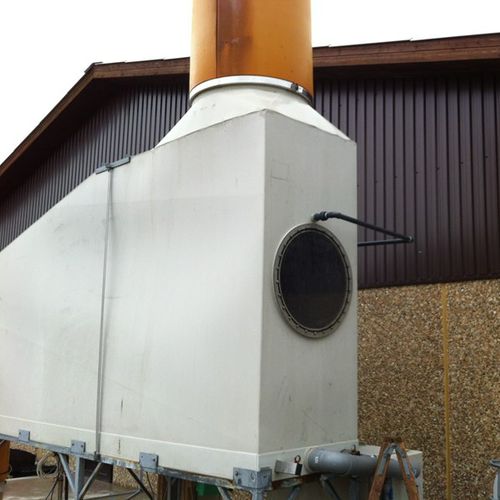

Air treatment system

for livestock buildings

FLEXIBLE INSTALLATION In houses with ventilation chimneys, the air cleaners operate as basic ventilation, and the additional chimneys are only used as a supplement in the warmer months. The decentralized air cleaners can be placed on every second chimney, making it suitable for existing houses as mounting can be done without any changes of the construction. In houses with central extraction, the ventilated air from all sections will be collected in one large central duct, which is usually located in the attic of the house - alternatively next to the building or under the floor. EASY MANAGEMENT The cleaning process is controlled automatically from the central machine room, which contains the circulation tank, pump, steering etc. In the circulation tank, a scrubbing liquid with a low pH-value is released. This liquid is pumped in a pipe to the air cleaners, and after use, the liquid is returned to the circulation tank to be reprocessed. Thereby there fertilizer is continually drained off, controlled by the pH of the scrubber liquid. The management of the air cleaning system is connected to the general alarm system. The operating status etc. is shown on the display, which also can be connected by PC or cell phone. UP TO 90% AIR CLEANING The air cleaning system can be fitted individually to the need of capacity and performance. The modular structure makes it possible to make an economic and optimal solution – regardless of the reduction requirements (50%, 70% or 90% NH3 reduction).
