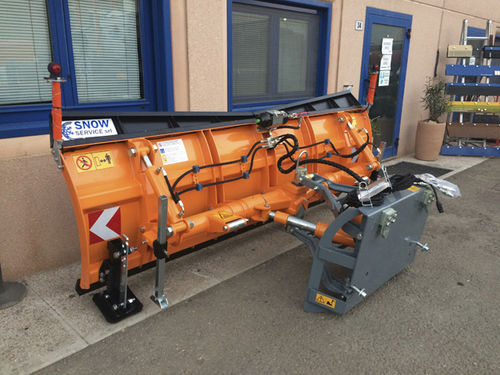

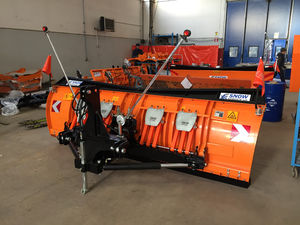

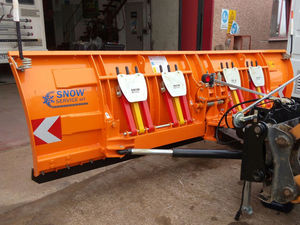

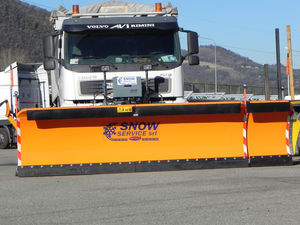

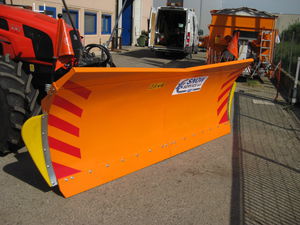

Straight snow blade SRA 5 Series

with hydraulic adjustment

Classification / General and building materials Features Snow plow truck with GVW> 100 q.li and tractors greater than 90 hp power with weight> 45 quintals. Equipment Snow built entirely of steel with high mechanical characteristics and counter-plate quick fit conforms to the Statement of DIN 76060 / A. Front shear in one piece with scraping knife wear steel. shockproof system consists of pair of hydraulic cylinders for handling blade angle of the forward / backward (impalement), connected to a nitrogen accumulator. mechanical limit switch stops into the maximum tilt position (to protect the hydraulic cylinder for tilt) Central Mechanical system, which allows an angle of + 5 ° transverse pitch, horizontal automatic locking blade raised transfer. Oven painted with a special anti-rust treatment and final enamel RAL 2011 (orange). overpressure valve for shock side impact, R2 pipes with fittings and standardized quick couplings. Operation Hydraulic, with hydraulic cylinders for the left / right tilt and lifting / lowering and two cylinders for moving forward / backward blade angle of (impalement). Sources of energy Electrohydraulic power to 24 Volt can be installed on request (optional), the implement Snow. Alternatively, special hydraulic plant realized on the thrust means (3 distributors need of a double-acting with floating position).
