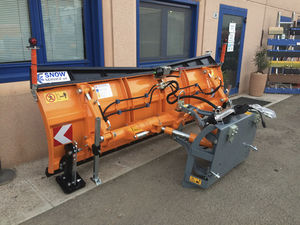

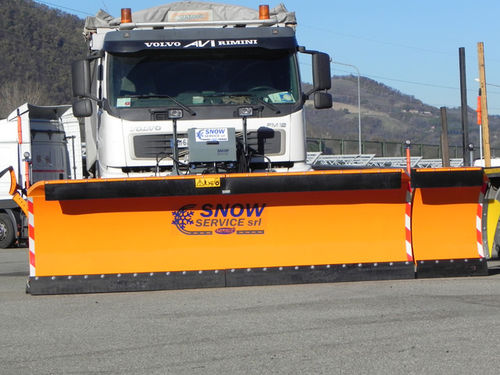

Straight snow blade SRA-5 XXL

with hydraulic adjustment

Classification / General and building materials Features Snow plow truck with GVW> 100 q.li and agricultural tractors with more than 130 hp power with weight> 60 quintals. Snow Equipment entirely made with high mechanical characteristics and strike quick fit steel conforming to DIN 76060 standard A (optional docking 1200 x 600, with 4 mechanical hooks). Front aileron in one piece with scraping knife wear-resistant steel (in the SRA-5 version XL), in the SRA-5 XXL version instead are present two lateral ailerons to opening / closing hydraulic of 800 mm. shockproof system consists of pair of hydraulic cylinders for handling blade angle of the forward / backward (impalement), connected to a nitrogen accumulator. mechanical limit switch stops into the maximum tilt position (to protect the hydraulic cylinder for tilt) Central Mechanical system, which allows an angle of + 5 ° transverse pitch, horizontal automatic locking blade raised transfer Painted in oven with special anti-rust treatment and final enamel RAL 2011 (orange). overpressure valve for shock side impact, R2 pipes with fittings and standardized quick couplings. Operation Hydraulic hydraulic cylinders for right / left tilting, lifting and lowering, two hydraulic cylinders for forward movement back aileron (impalement), hydraulic feet for blade engagement. in the SRA-S XL blade there are also two double-acting cylinders for arming / disarming 2 ° knife vulkollan, while in the SRA-5 XXL version there are two double-acting cylinders for opening and closing of the side wings.
