Mounted agricultural atomizer NS series
for viticulturefor row cropshead to head nebulizers

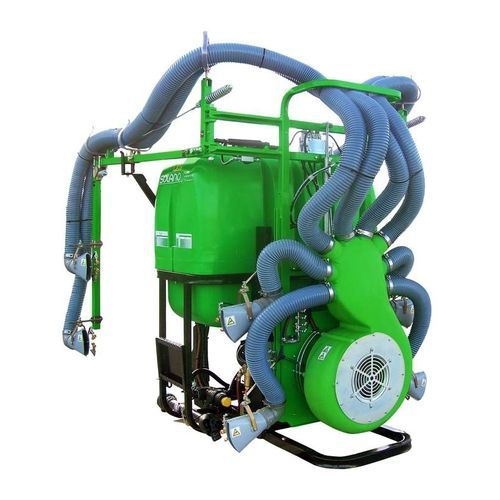

Mounted agricultural atomizer - NS series - solano-horizonte - for viticulture / for row crops / head to head nebulizers

Mounted agricultural atomizer - NS series - solano-horizonte - for viticulture / for row crops / head to head nebulizers - image - 2

Add to favorites

Compare this product

Characteristics

Mobility: mounted
Application: for viticulture, for row crops
Type: head to head nebulizers
Technology: hydraulic
Other characteristics: centrifugal, air-assisted
Capacity: 600 l, 800 l, 1,000 l, 1,200 l
(158.5 gal, 211.3 gal, 264.2 gal, 317 gal)
Pump capacity: 97 l/min, 104 l/min, 109 l/min, 137 l/min, 169 l/min
(25.6 us gal/min, 27.5 us gal/min, 28.8 us gal/min, 36.2 us gal/min, 44.6 us gal/min)
Pump pressure: 40 bar, 50 bar, 60 bar
(580.2 psi, 725.2 psi, 870.2 psi)

Description

We have designed our nebulizers to perform very effective treatments on all the area of vineyards in intensive crop. They are available from 600 l to 1.200 L. Characteristics •Designed to treat 2 full rows with adjustable track width. •8 diffusers, each one featuring 2 turbulence nozzle and individual anti-drip device. •Diffusers are independent, height-adjustable, orientable upwards and downwards. They have a 110.mm air-intake and are fed directly from the fan to avoid any air loss. •Arms are articulated, and the booms feature a safety system that enables them to move frontwards or backwards if they are stroken by an obstacle. When they are open, arms have a winch that cushion strikes from up to down to make circulation easier between rows. •A selector of hydraulic functions allows to run the three hydraulic functions (elevation, left side open/close, right side open/close) from the tractor’s cabin. •Double fan Ø 500 mm with double front, inverted suction, centrifugal clutch and a 16.000 m³/h air volume.
