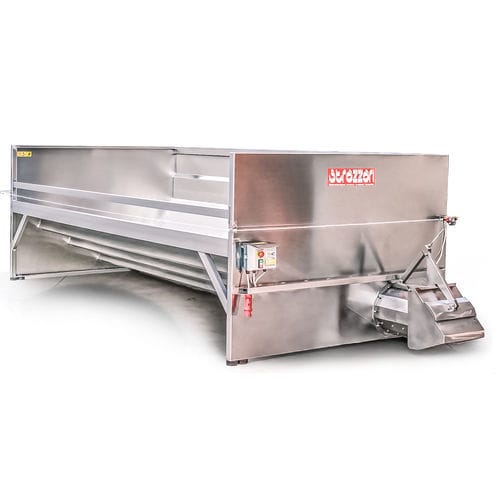

Grape receiving hopper T4

The T4 hopper is produced in two standard versions: 3x2 m and 4x2 m. entirely in AISI 304 stainless steel, satin finish and tig welding for a perfect seal. The tank is built with a particular asymmetric inclination of the walls, which makes the product descent highly effective and avoids formation of the bridge on the auger. Supporting structure in horizontal and vertical stainless steel tubes, 120x60-80x80 - 60x40. The hopper is equipped with stainless steel auger D. 300/400 with tube for direct discharge complete with door for hermetic closure. The protections on the sides and on the front of the door, allow directing of the flow of the product downwards. The door opening can be adjusted manually, electrically or hydraulically. Stainless steel auger D.300/400 without supports that hinder the passage with sliding profiles in nylon, mounted on the spiral for centring of the auger. Bolted reducer-holder flange, allows quick removal of the auger on both sides. Safety device with 'cable' connected to a micro-switch, to block motion of the cochlea from any position, or safety edge or security gate barrier. In addition to the standard sizes customised tanks of any size are produced, palletised tanks for transportation, to be mounted on a platform trailer.
