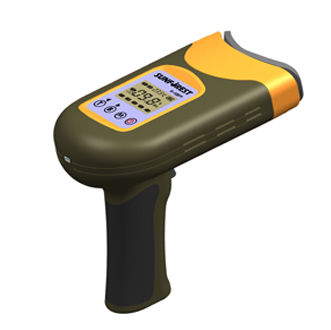

Fruit maturity meter H-100M

non-destructiveportable

Nondestructive Fruit Quality Meter Applicable for Apple, Pear, Peach, Persimmon, Orange, and Grape Method of measurement Interactance (NIR spectrum 700nm ~ 950nm) Measurement range 5 ~ 25 Brix % (sugar contents), adjustable Measurement speed 2.0 seconds Battery hours over 2,000 scans Accuracy of measurement Correlation coefficient R² : above 0.75, Standard Error (SEC) : less 0.5 (Brix) Data storage Up to 1,000 measurements Model built-in Max 5 models stored in the device Data interface USB 2.0 (PC), Bluetooth 2.0(Smartphone) RFID reader Built in (RFID tag optionally supplied) Operating temp 5℃∼35℃, 85 %RH (specific to spectrometer) Power source Li-ion battery (Charger DC12V/1.5A) Weight 450 g (main instrument without head cap) SUNFOREST User Program User Program and PLSR Program User Program is provided to monitor and analyze the measured data stored in H-100. User can transfer the data from H-100 into the PC. Also this program can be used to update new parameter into the H-100 instrument. PLSR Program is provided to generate a Calibration Model. Calibration results may be affected by various factors variety of cultivar, plant environment, seasonal change, growing time, temperature, etc. A standard model provided with H-100 could be accurately working to user’s fruit sample due to environment reasons. In this case, user can either adjust or newly create their own calibration model by the provided PLSR Program.
