Loader wagon CA 20
single-axlesilagewith mechanic braking

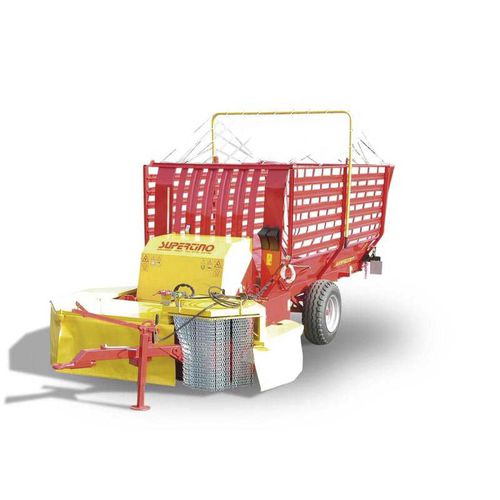

Loader wagon - CA 20 - SUPERTINO SRL - single-axle / silage / with mechanic braking

Loader wagon - CA 20 - SUPERTINO SRL - single-axle / silage / with mechanic braking - image - 2

Loader wagon - CA 20 - SUPERTINO SRL - single-axle / silage / with mechanic braking - image - 3

Add to favorites

Compare this product

Characteristics

Construction: self-loading
Number of axles: single-axle
Application: silage
Brake system: with mechanic braking
Other characteristic: harvesting, with mower
Empty weight: 1,400 kg
(3,086.5 lb)
Load volume: 12 m³
(423.776 ft³)
Loading case lenght: 3,000 mm, 3,500 mm
(118.1 in, 137.8 in)
Loading case width: 1,800 mm
(70.9 in)
Loading case hight: 1,300 mm
(51.2 in)

Description

The model CA 20 with hitch under the PTO is ideal for farmers that need maximum machine stability in steep slops. The positioning for cutting is hydraulic. Incorporated hydraulic pump. Cardan shaft with free wheel and clutch for the transmission to the mower. Command by flexible cable. Only one knife on the loading conveyor. Mechanic rear unloading. Mechanical opening and closing of the rear door. Cutting width (mm):1860 Number of bars on the loading conveyor:4 Total lenght (mm):6200 Lenght (toweye-axle) (mm):3790 Height of unloading (mm):720 Maximal height (mm):2700 Minimum total height (mm):2100 Total width (mm):2140 Track width (mm):1510 Maximal height of top arch (mm):680 Moving bar height from ground (mm):250 Holes (wheel):6 Tires standard:10.0/75-15.3 10 PL OPTIONS Diff. For the increase of 2 PR:• Tires 13/55-16 12 PR:• Minus for machine without incorporated hydraulic system:• Hydraulic opening for the rear door:• Bilateral unloading with belt (2 function):• Lights:• Road tests:• Electro-hydraulic commands:• Lever:• Road approval Italia:• Standard • Optional
