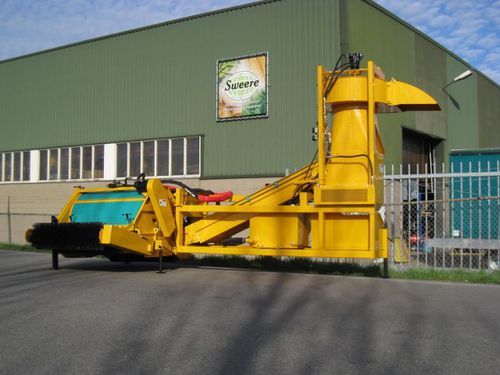

Bean harvester machine Trac Pix

tractor-mounted2-row

The Trac-Pix for beans is a two row harvesting machine which is to be mounted on your tractor. The short-coupled Trac-Pix is an ideal harvester for green bean producers who farm smaller plots with tight turns, or those who plant narrower rows. This machine is a self-contained harvesting system that goes anywhere your tractor goes. Specifications Cleaning system: Adjustable hydraulically-driven, variable speed 69cm (27") fan, cleans beans as they free fall into awaiting bean hoppers. Bean hoppers: Two bean hoppers are always positioned under the fan. There is no need to stop harvesting to change hoppers. A two-position lever adjusts bean flow to the empty proper hopper. Hydraulic system: A single self-contained pump unit operates all hydraulic functions on the harvester: one conveyor motor and one fan motor. Tractor requirements: 3 Point Hitch Category II. Refer to individual tractor manuals for load limitations. 540 RPM PTO with 1-3/8-6 spline SAE. Dimensions: Hitch: 3 point Category II Brush belt: 91cm wide (11' 5"). The brushes lean the tops of plants back so they will be picked from top down. Reel: 91cm wide (36") 16 finger bars multi-density reel picks plant from the top down, gently carrying the crop over and onto the cross conveyor. Cross Conveyor: 44cm wide (17 1/2") 324cm long (10' 3 1/2") rubber cross conveyor belts conveys beans up to the fan.
