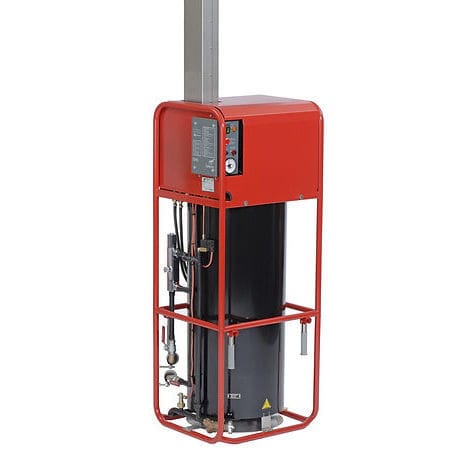

Heat-recovery water heater DH 5

This device is designed for mobile or stationary use. It is mounted in a solid tubular frame and can be carried on four handles. The shower capacity is designed for 55 people per hour with four shower heads in operation, a shower duration of four minutes and a water consumption of about 33 litres per shower nozzle. Technical data (Approximate values) Dimensions48 x 55 x 140 cm (without chimney), height with chimney 207 cm Weight 100 kg Fuel Diesel oil, heating oil or kerosene Fuel supply with connection to a 20 l standard jerrycan Heating coil and piping Copper Exhaust chimney Stainless steel, double-walled, can be touched without risk of burns. The chimney can be mounted and removed. Burner 1-stage with automatic burner control, Weishaupt type, protection class IP43 Burner power 63 kW Water flow rate 500 up to 2200 l/h Temperature increase 30°C at 1800 l/h Shower water temperature Thermostatic controlled, infinitively variable, with fuser setting at 38° C Maximum temperature 95° C Water connections Water inlet, fixed D-coupling, with filter and cleaning access Shower water outlet, fixed D-coupling, with shut-off ball valve Hot water outlet, fixed D-coupling, with shut-off ball valve Power consumption 400 Watt Supply voltage 230 V/50 Hz or 110 V/60 Hz Main plug waterproof, protection class IP67 Varnish RAL 3000, fire red (other RAL colours on request)
