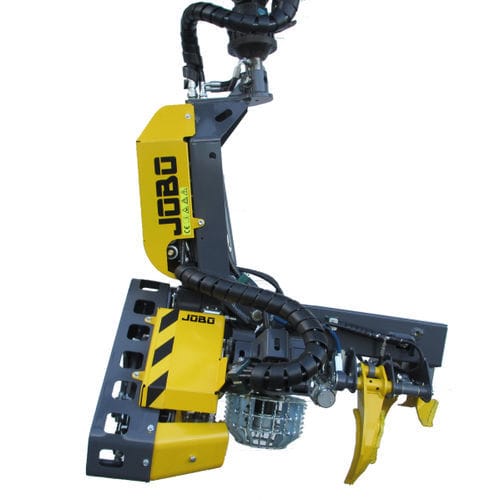

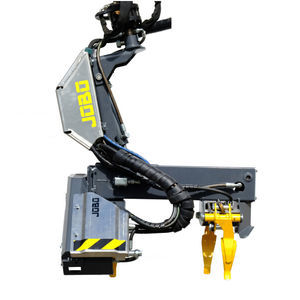

Forest thinning felling head JOBO ST50 Combi

with delimber

This small stroke harvester is specifically developed to be fitted on small to medium size base machines. It is now also fitted with feed rolls. With the rolls it has four specific operation modes, combined, rolls only, multi stem and multi grip. Technical data Delimbing - 25 cm down to abt. 2 cm Working pressure - 160-190 bar Working mode - Stroke, 50 cm, speed 0,75/1,0 m/s Roll feed - Abt. 2 m/s at 80 l/min Delimbing force - 15/22,5 kN at 180 bar, oil flow 30-60 l/min. Bar and chain - Bar 14/16 in, chain 1,6/2,0mm , .404in Length x height x width - 113x 125 x 87 cm Weight without oil - 295 kg Voltage - 12 or 24 VDC Standard features • CAN-bus control system • Saw limiter, mechanical • Automatic feed and reverse • Length measure from stroke (+/-5 cm) • Preselection of lenths (6 x 6 lengths) • Ready for stump treatment Selectable options • Measuring roll • Diameter measurement • Pump for stump treatment
