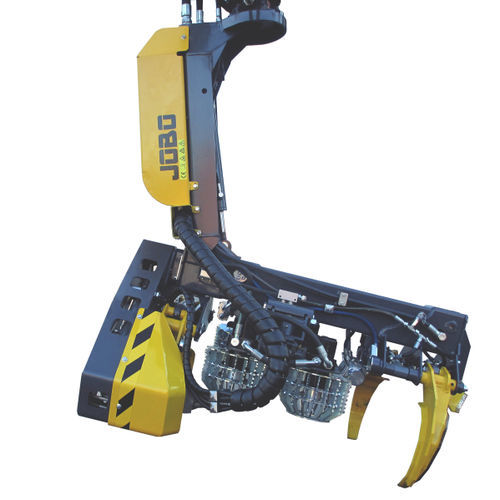

Forest thinning felling head JOBO SR75 COMBI

with delimber

Very strong stroke harvester which also can be fitted with feed rolls. Thanks to four specific operation modes the feed can be with stroke, with rolls alone or combined. Strong feed with stroke and fast feed with rolls. Technical details Delimbing - 35 cm to 2 cm Working pressure - 170-200 bar Working modes - Stroke, 75 cm, feed 0,75/1,0 m/s Feed rolls - Feed n. 2-3,5 m/sec, 80-120 l/min Delimbing force - 35/22,5 kN at 180 bar, flow 80-120 l/min Bar and chain - Bar 50/54 cm, chain 2,0mm, .404 in L x H x W - 140 x 150 x 95 cm Weight without oil - 430 kg Voltage - 12 or 24 VDC Standard features • CAN-bus controls • Electronic saw limiter • Autom. feed and reverse • Length measure (+/-5 cm) • Length preselections(6 x 6) • Stump treatment readiness Options • Measuring wheel with magnetic sensor(+/-3 cm) • Diameter measure. and volume calculation • Stump treatment pump • Inbuilt tilt directional valve
