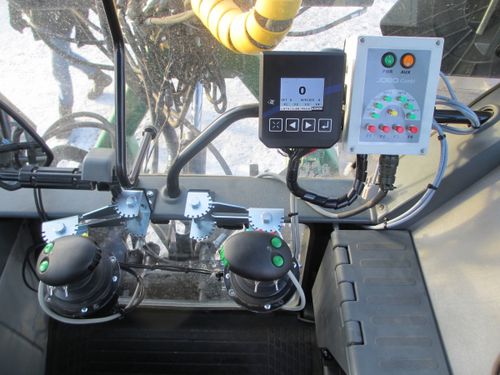

Forestry machinery control system JOBO CAN CCD

The standard control system is JOBO CAN CCD which provides all the required features to handle the harvester head in normal operation. It allows user to set specific timers to tune the behaviour of the harvester head depending on oil flows and temperatures. To set the species and require preselected lengths is made easy through simple menu selections. Technical features Operating voltage - 9 - 32 VDC Operating temperature - -20 - +60 °C LCD display - 3,5in QVGA color (320 x 240) Case, aluminium - IP67 Interface - CAN 2.0B, ISO 11898 Connection - 44 pin AMP Super Seal Real time clock - Standard features • Internal diagnostics in real time • Automatic feed and reverse • Length measure from stroke (± 5 cm) • Preselection of lenths (6 x 6 lengths) • Four operation modes ◘F1 - Combined stroke/rolls ◘F2 - Rolls only ◘F3 - MultiStem™ ◘F4 - MultiGrip™ Options available • Length measure measuring roll (± 3 cm) • Pump for stump treatment • Valve board ready for feed roll assembly • Panel mount or split mounting systems
