Vertical mixer

towedsingle-augerself-unloading

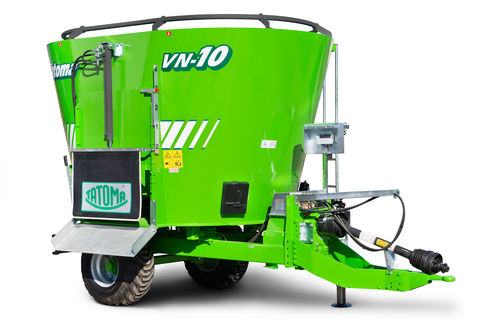

The VN vertical mixer model was born to respond to the sector´s need for a quality, simple and effective machine. The model is based on a tapered conical shape with a conical auger enabling any product to be chopped or mixed. Mixing is carried out by the effect of the multiple serrated blades of the auger, which cut the product while it moves up and then falls back down thanks to gravity. The design of our vertical mixer has evolved to achieve both tub and auger geometry to ensure rapid and efficient mixing. Discharge takes place through one or two side doors on the straight or curved side of the tub, as appropriate. Constructively it is a lightweight and compact machine. It is particularly designed for direct connection to the tractor, which can be low power, as there is no need to change gear. Other advantages: · Towed vertical mixer · Single auger with cutting blades · 3 load cells diam. 54 mm over independent · Side unloading door · 2 mechanical counter knives · Single ladder · Pressure gauge valve (door opening) · One speed gear box (34 rev./minute) · Direct operation by tractor hydraulics · Non programmable scale · Manual foot · Height adjustable Drawbar · Single PTO shaft · Single wheels
