Cattle automatic feeding system

self-propelledhopper

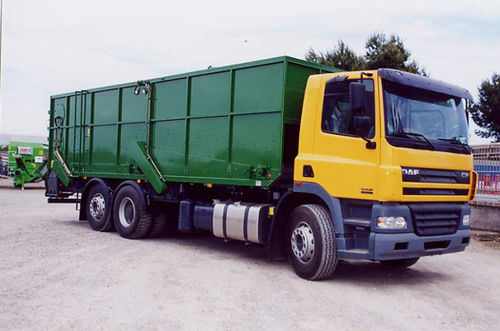

The delivery truck is intended for the feed distribution generally used on agricultural and livestock premises. It is a perfect complement to static plants or for the transfer of products from a central plant distribution. The box is designed to fit the truck chassis and is equipped with multiple load cells, which transmit their signal to a scale with a screen located in the cab, allowing direct and continuous control of the amount discharged at any time. In the single compartment truck, the box is equipped with a moving bottom which discharges onto a cross belt located in the rear and which discharges the products through one or two side doors. In the two-compartment truck, the box is equipped with two moving floors, divided by a separator with a door. The floor of the front compartment are placed on an inclined plane towards the rear, which discharges onto a cross conveyor at the end of the box. To unload the truck, first the rear and front floors are activated sequentially with the products being discharged on a conveyor belt. The structure can be made in aluminium, which lightens the truck, obtaining greater load capacity.
