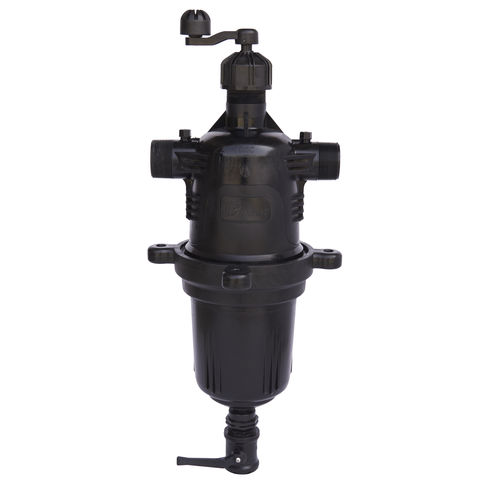

Screen irrigation filter Adir TS

plasticsemi-automatic

TAVLIT offers semi-automatic screen filters, models TS, for easy effective filtration. The plastic filters are designed for long life and service in hard conditions and include a strong INOX 316 screen mesh. During operation water enters the filter and dirt is accumulated on the inner surface of the screen and clean water is supplied to the field. When the filter is dirty as shown by the head-loss indicator, the user performs a flushing cycle by opening the drain valve and rotating the handle – Opening the drain valve creates low pressure in the suction nozzles and dirt is sucked from the screen to the nozzles.The rotation of the handle moves the suction nozzles on the entire screen area and remove all the accumulated dirt off the screen – debris is flushed through the drain port out of the filter. During the flushing cycle water flow to the field are uninterrupted. The filters are available in 2” and 3” for flow rates up to 50 m3/h (220 gpm). Applications: • Water filtration for agriculture, Turf and industry. • Intended as control filter in subsections for easy cleaning. • Most suitable for low quality water sources where the user prefers to clean the filter without dismantling it. Technical specifications: • Available sizes: 2” 3”. • Max working pressure: 10 bar. • Max. flow rate: • 2” 25 m3/h • 3” 50 m3/h • Available in 80 - 200 mesh. • Min. flushing pressure: 2 bar. • Flushing flow rate: • 5.4 m3/h At 2 bar • 6.8 m3/h At 3 bar • Filtration area: 950 cm2 • Construction materials: Nylon, Polypropylene.
