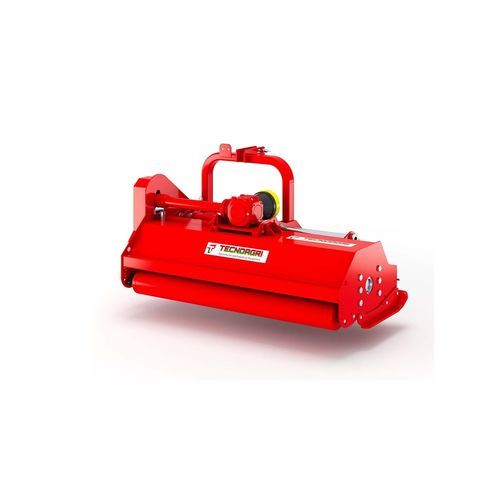

Mounted mulcher GOLDRAKE
hammergrass36 hammers

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer
Applications
grass
Number of hammers
36 hammers, 48 hammers, 60 hammers, 72 hammers
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Max.: 260 cm
(102.36 in)

Min.: 150 cm
(59.06 in)

Rotational speed

540 rpm, 1,000 rpm
(3,393 rad.min-1, 6,283 rad.min-1)

Tractor power

Max.: 90 ch
(90 hp)

Min.: 50 ch
(50 hp)

Weight

Max.: 830 kg
(1,829.84 lb)

Min.: 502 kg
(1,106.72 lb)

Description

GOLDRAKE is specifically for tractors with 50 to 90 horsepower (min.). Application is at the rear. The special Higher raised frame makes it ideal for shredding grass, bushes, brambles and branches, as well as for open field work: maize stalks, sorghum, cotton, grass, straw, potato leaves, beet leaves, sugar cane and for maintaining uncultivated land. All the accessories to facilitate working are already standard: the working widths that vary from 150 to 260 cm, the hydraulic movement, the skids and the rear roller with soil scraper. Cat 2 3-point linkage with hydraulic traverse To make work easier, 500 mm hydraulic translation is standard. chassis Higher The special chassis Higher facilitates chopping and grinding operations. Chassis with rounded corner. The rounded corner in the frame prevents contact with shrubs and vegetation. Front protective strips For the protection of workers during chopping operations. Skids and rear roller with soil scraper The support skids are adjustable to adjust the working height. The rear roller is produced with a soil scraper. Counterblades With a row of counter blades, the material is chopped more efficiently.
