Mounted wood chipper SKORPION 250 R/90

PTO-drivenhydraulic supply

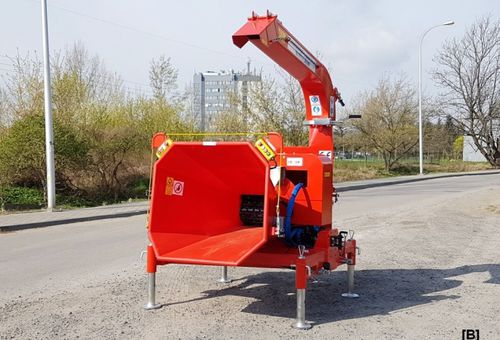

Skorpion 250 R/90 is designed for shredding tree limbs and trunks with a diameter of up to 250 mm. Skorpion 250R/90 is a disc model with a pneumatic blow-out system on the disc. Chips are ejected through the rotating chimney which can turn by 360 degrees in relation to the chassis. The cutting system consists of a disc with cutting knives sharpened on either side. This chipper is mounted on a single-axial chassis, adapted to tow it in the forest and field roads [A]. There is also a version with a three-point system of linkage to the tractor (without single-axial chassis) [B]. The chipper is designed to work with an over 80 hp farm tractor. The drive is transmitted from PTO shaft of a tractor with the speed of 540 or 1000 revolutions per minute. Its feed system consists of two pulling rollers, driven by separate hydraulic motors from a hydraulic pump mounted on the chipper.
