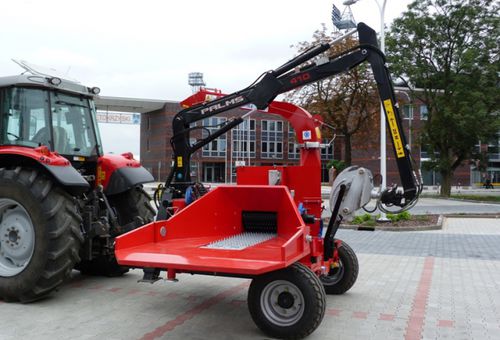

Towed wood chipper SKORPION 250 RG/90

PTO-drivenwith cranehydraulic supply

Skorpion 250 RG/90 with crawler chain conveyor has been designed for shredding tree limbs and trunks/stubs with diameter of 250 mm. It’s a mobile disc model with pneumatic blow-out system installed on the disc. Chips are ejected through a rotary chimney which can turn by 360° in relation to the chassis. The machine to collaborate with over 100 hp farm tractor. The cutting system of this chipper consists of a disc with cutting knives suitable for sharpening on either side. The drive is transmitted from PTO shaft of a tractor with the speed of 540 or 1000 revolutions per minute. The essential equipment of the chipper includes a hydraulic propulsion system servicing the upper feeding roll and a crawler installed instead of normally used lower roll. Such solution allows for easier loading of wood, improves operator’s work and enhances efficiency. Both of them are driven by hydraulic motors. All above mentioned devices are driven by its own hydraulic pump.
