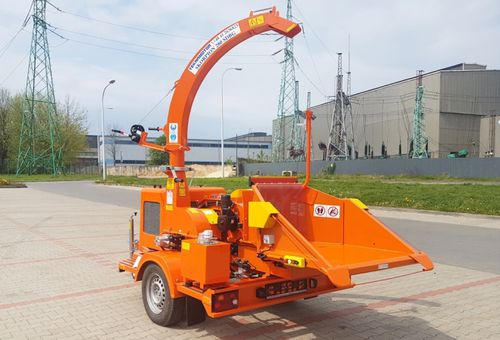

Towed wood chipper SKORPION 280 SDBG

diesel enginehydraulic supply

SKORPION 280 SDBG is the smallest produced by Teknamotor drum-type chipper. Large loading table, 265 mm wide and 190 mm high inlet allows chipping branches with offshoots (with leaves and needles) as well as a round timber of the diameter up to 180 mm. The feeding system consists of built on a rocker toothed roll of the diameter of 280 mm and a feeding table equipped with toothed 680 mm in length chain feeder, preceded by manually folded flap. This solution makes the loading much easier, improves the work of operator and increases the efficiency. Both - roll and chain feeder - are powered by hydraulic gear motors driven by own hydraulic pump installed on the chipper. The propulsion system is a three-cylinder liquid-cooled diesel engine with capacity of 24,5 hp furnished with a bonnet. Optionally the propulsion system is a due-cylinder air-cooled petrol engine with capacity of 37 hp. In order to maintain many hours of continuous operation, the chipper is equipped with a 40 liter fuel tank. A sector-type drum with three cutting knives (one rotation of the drum for one full cut) allows to achieve a very high potential of the chipper. Knives - produced out of special alloy steel and properly heat treated - can be sharpened several times - even 20 mm of the nominal size, assuring theirs long-term use.
