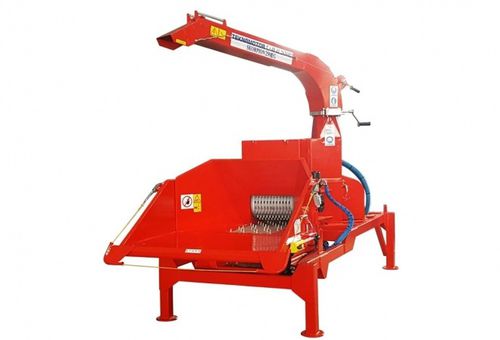

Mounted wood chipper SKORPION 250E / 250EG

electrichydraulic supply

Skorpion 250E / 250EG is a stationary disc chipper used to shred sawmill edgings, branches, tree trunks up to 250 mm in diameter. The cutting system of Skorpion 250E /250EG consists of a disc equipped with two or three cutting blades, working with two counter knives. The cutting knives life has been optimized by their double-sided sharpening, which allows them to be rotated by 180 °, resulting in twice the length of their use. All the knives are made of appropriately selected tool steel and subjected to professional heat treatment. In addition, the chipper disc also fulfills the task of a fan and ejects produced chips through the ejection tube, which can be positioned in any direction at a full 360 ° radius. The chipper is available in two versions: with a classic octagonal loading throat (Skorpion 250 E) [A] or with a loading table fitted with a toothed crawler (Skorpion 250 EG) [B]. It is driven by an electric motor of 45 or 55 kW. The chopper is equipped with a hydraulic propulsion system for feeding the material, driven by its own hydraulic pump. Safety of the operator of a chipper is ensured by a cable safety switch attached, which - by pulling the cord in any direction - causes the hydraulic feed system to stop immediately. Unlocking the system takes place by first pressing the "Reset" button before pressing the "forward" button to return to the normal operation of the chipper. Stopping the feeding might be also effected by pressing the "EMERGENCY STOP" button.
