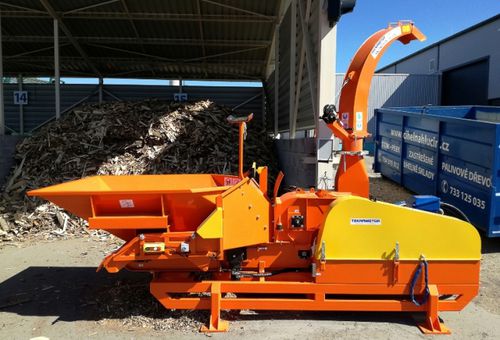

Mounted wood chipper SKORPION 350 EBG

electrichydraulic supply

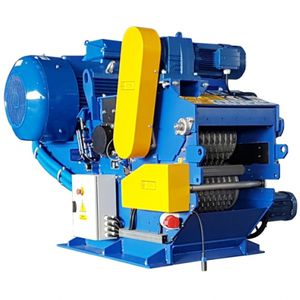

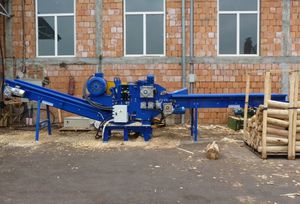

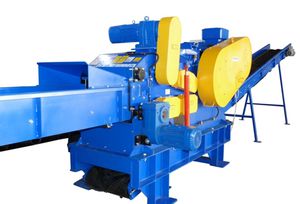

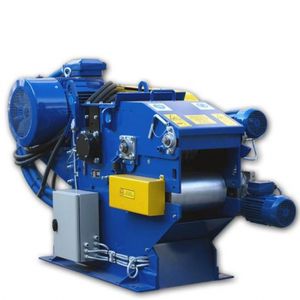

Skorpion 350 EBG is a drum chipper manufactured on the basis of the already proven design of the chipper series Skorpion 350. Due to its high processing capacity this model performs extremely well when crushing short waste, for example the one from production of firewood. The chipper chute has a dimension of 375 mm in width and 340 mm in height. The hopper with the capacity of 1m³, mounted on the loading table, is designed for mechanical loading of waste. The wood chipper is equipped with a system of drawing in the wood waste; it consists of a pick-up roller mounted in the swing arm and presses the wood with a diameter of 380 mm, and a loading table with a system of two toothed tracks with the length of 750 mm and 630 mm. The long and wide surface of tracked carriers is the ease and efficiency of timber loading. The free space between tracked conveyors serves to separate contaminants such as small pebbles, soil, sand etc. thereby extending the life of the knives. The roll and the caterpillar track are driven by the hydraulic engines system from a hydraulic pump mounted on the chipper.
