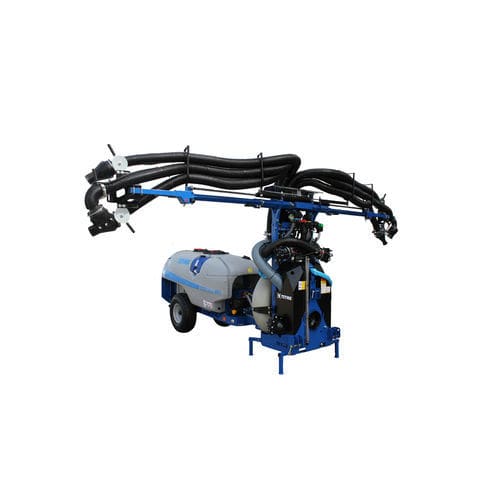

Towed sprayer DUO PLUS

for viticulturecannonhydraulic

Half-trailed machine with three-points hitching and compact articulated easy to handle coupling, special for vineyard. 1.050 mm wide at maximum for machines of 800 and 1.000 l. Crops’ frames from 1,8 to 3 m. Vineyard height up until 2,5 m. Focused treatments on 2 or 3 rows simultaneously. Applications from 150 l/ha. with minimal drift. March speed up until 7 km/h. Machine with low consumption impeller. Highest required power (air unit + pump) 40 HP. Available kits PROVENCE KIT Kit with opening of telescopic arm and folding boom end. 3 complete rows’ treatment.The 2 external sides are sprayed with cannons. Air distribution and liquid flow 100% uniform per lane, adapted to the leaf formation of the crop.The kit consist of 6 fan spouts and 4 cannons, all of them steerable and adaptable to the specifications of the crop.Optional hydraulic lift with a travel distance of 500 mm.Easy to handle with obstacles and lanes change.Option of steerable cannons by an electrical piston. PENEDES KIT Kit with opening of telescopic arm and folding boom end. 2 complete rows’ treatment. Distribution of air and uniform liquid flow, adapted to the leaf formation of the crop.100% focused treatment without drift. X-L treatment technology.The kit consists of 8 steerable fan spouts which are adaptable to the specifications of the crop.Optional hydraulic lift with a travel distance of 500 mm.Easy to handle with obstacles and lanes change.
