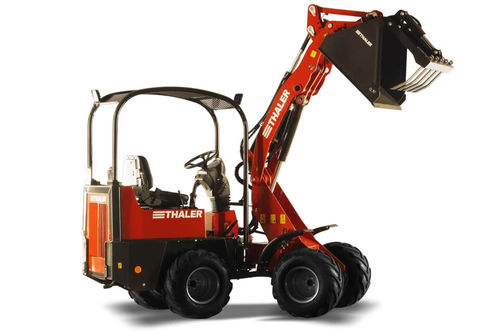

Rubber-tired loader 2226 series

with cabcompactarticulated

It is the continuous follow-up in model policy, the Thaler-Lader 2226 L/S/H. It has the same strong and robust physical frame as his ‘little brother’ 2220, only big difference is the Yanmar engine with 26 HP, also conform to the EU emissions standards level 5 = Stage V, without exhaust gas treatment, in the rear chassis. Without any doubt, it is getting more agile and faster in working with it. Just more fun is waiting for you. The drive line remains the same as the one of its 'little brother'. A hydrostatic pump is flanged to the engine and 2 hydraulic motors (1 per axle) convert the hydraulic pressure into mechanical power for driving, therefore, you see only a hose package and no cardan shaft under the chassis. The minimum width of 92 cm and the quite wide angle of the centre articulation of 55° allow working in the tightest of spaces, no matter where you want to work, either in stable with horses or on a cattle barn or on a construction site or behind the house in the garden, it is simply compact, handy and light with 1,5 - 1,6t o operating weight. Just for information: the model name provides information about the maximum height of shovel pivot pin of the lifting boom. The abbreviation L / S / H means: 2226 L: short lifting boom on a low front chassis for high tipping loads at a low maximum height of the shovel pivot pin = 2.15 m 2226 S: Standard lifting boom on a standard front chassis for normal tipping loads at standard heights of the shovel pivot pin = 2.71 m 2226 H: Longer lifting boom on a standard front chassis with a minor decrease in tipping loads and for better heights of the shovel pivot point = 2.87 m
