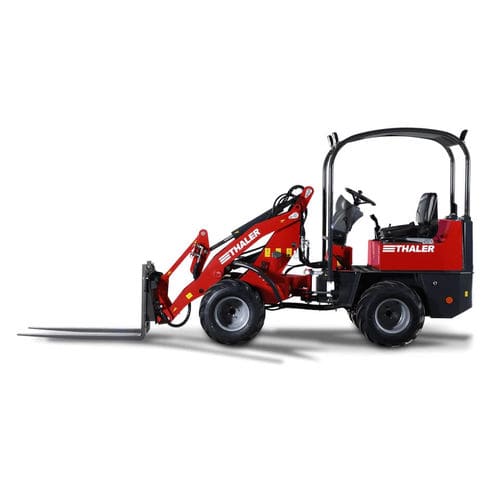

Rubber-tired loader 2220 series

with cabarticulated

For us, this is the classic entry-level model, the Thaler-Lader 2220 L/S, in both terms: budget and Horsepower (HP). To the 20-HP engine made by Yanmar and conform to the EU emissions standards level 5 = Stage V, still without exhaust gas cleaning, is flanged a hydrostatic pump, that gives its power to the two axles via two hydraulic motors (1 per axle). Therefore, you will find a hose package going underneath from the rear to the front chassis and no cardan shaft. The minimum width of 92 cm and the quite wide angle of the centre articulation of 55 ° allow working in the tightest of spaces, no matter where you want to work, either in stable with horses or on a cattle barn or on a construction site or behind the house in the garden, it is simply compact, handy and light with 1,5 - 1,6t o operating weight. Just for information: the model name provides information about the maximum height of shovel pivot pin of the lifting boom. The abbreviation L / S means: 2220 L: short lifting boom on a low front chassis for high tipping loads at a low maximum height of the shovel pivot pin = 2.15 m 2220 S: Standard lifting boom on a standard front chassis for normal tipping loads at standard heights of the shovel pivot pin = 2.71 m Technical performance data Engine 3-cylinder Yanmar, 14.6 KW (19 HP) Displacement 900 cc Exhaust gas treatment NO Cooling system combined water + oil cooler Hydrostatic drive Hydrostatic pump @ 230 bar Transmission 2 oil motors Speed 0-11 (1-stage) Standrd tires 7.00-12 AS
