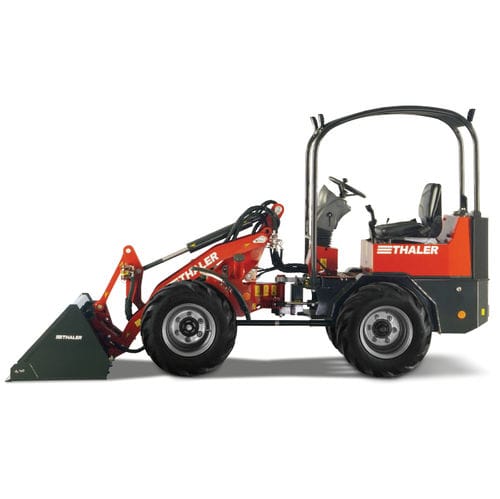

Rubber-tired loader 2326 series

with cabcompactarticulated

The Thaler-Lader 2326 L/S/H, is nearly identical to the 2226 L / S / H in its dimensions (minimum width of only 94 cm). Even the engine made by Yanmar with 20 HP is the same. And therefore, no exhaust gas treatment necessary for the 2326. So, you may wonder: why does this model exist? - The answer lies in the drive line, it is by far more modern, innovative and, above all, more powerful in thrust and end-speed. With 2 stages we are now running up to 18 km/h, the only one in the market. The drive line is the major difference. Instead of the two hydraulic motors (1 per axle) on the axles, we now have a high-pressure radial piston motor that converts the hydraulic pressure into mechanical force for driving. A cardan shaft brings then the power to the front axle. This has two very decisive advantages: higher top speed: 18 km/h with two stages and a better thrust despite the small HP. The minimum width of 94 cm and also the rather wide angle of the centre articulation of 55° allow working in confined and tiny spaces, , no matter where you want to work, either in stable with horses or on a cattle barn or on a construction site or behind the house in the garden, it is simply compact, handy and light with 1,5 - 1,6t o operating weight. Just for information: the model name provides information about the maximum height of shovel pivot pin of the lifting boom. The abbreviation L / S / H means: 2326 L: short lifting boom on a low front chassis for high tipping loads at a low maximum height of the shovel pivot pin = 2.15 m 2326 S: Standard lifting boom on a standard front chassis for normal tipping loads at standard heights of the shovel pivot pin = 2.71 m
