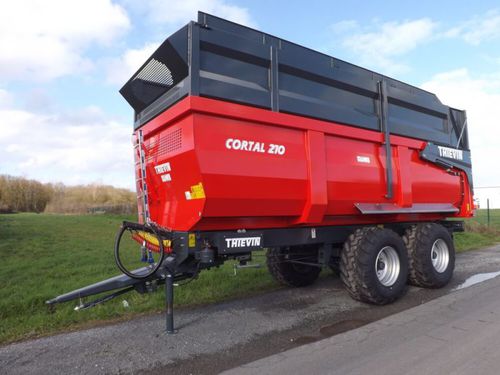

Dump trailer CORTAL 210

tippingmountedtandem axle

The CORTAL 210 is the latest model in the CORTAL range of two-axle agricultural trailers. This model, which has a GVW of 29 T, is available in four lengths (6.20 m / 7.20 m / 7.50 m / 8.00 m), it will allow you to transport large volumes while keeping a manageable trailer. The multipurpose monocoque agricultural trailer Its tandem axle with connecting rods and its single rear follower as standard will ensure exceptional working comfort on the road, in the field or when tipping. Technical specifications Inside body length : 6 200 mm / 7 200 mm / 7 500 mm / 8 000 mm Maximum interior body width: 2,320 mm Height inside the box : 1 500 mm Volume with wheat racks: 22,9 m³ / 24,6 m³ / 25,6 m³ / 27,3 m³ Side plate: Steel S355 thickness 4 mm Bottom plate: Steel S235 thickness 5 mm Frame profiles: 300 x 100 x 10 mm Axle : Tandem with 26 T square rods of 150 mm with single rear follower Hydraulic braking: Drum 406 x 120 Original tires: 18R22.5 Compressor only for LG 7500 and 8000 mm: Cardanic compressor 85 L/min at 1000 rpm with hydraulic lowering Load transfer only for LG 7 500 and 8 000 mm: 2 load transfer cylinders for tractor supply Boom : Boom with adjustable mechanical suspensions, 13 leaf spring Ring : Fixed ring Translated with www.DeepL.com/Translator (free version)
