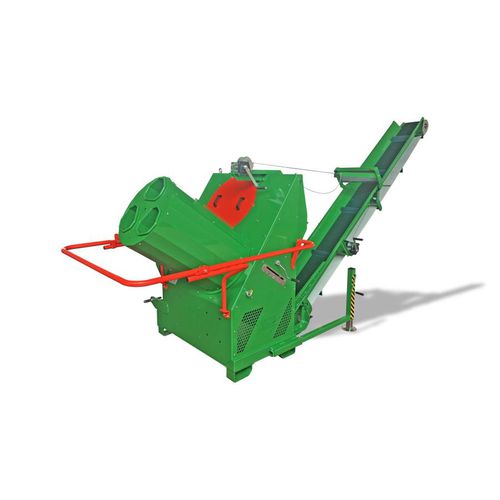

Circular sawmill RV.18 series

verticalstationarywith belt conveyor

Drum saw with automatic rotation Patented loading system with stationary drum. 2 load channels with great space for sliding of logs up to 180 mm dia. + 1 cut channel. Unique in its kind with great ease of loading exclusively in empty channels. Features Automatic drum rotation at cut ending. No risk of injury during loading. Energy saving and less wear thanks to the total absence of empty rotations. Total stop by lack of load. 2 load channels with great space for sliding of logs up to 180 mm dia. + 1 cut channel. Cutting length adjustment 25-30-33-40-45-50 cm. Clean cuts thanks to the secure locking of the logs with a gripper before every single cut. Cutting blade widia dia. 600 mm x hole 30 with 78 teeth, highly available on the market. Its replace is easy and approachable. Hydraulic drive of the blade and electro-hydraulic controls. Hydraulic system with 50 l. oil and filter in suction. Telescopic conveyor belt, 4 m or 5 m long at choice. Positioning of the tape by manual winches.
