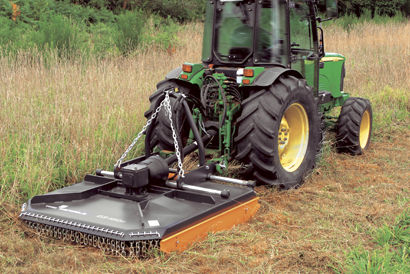

Agricultural rotary cutter D3

rear-mount

The agricultural mowers D1, D2 and D3 are the perfect complement to tractors low and medium power for agricultural use. Tremendously versatile, providing the user a unique experience for the cleaning and maintenance of plantations and other crops, both in features and performance. The main structure is designed so that it combines high strength and light weight, achieving significant savings in consumption and long life. TECHNICAL FEATURES · Folded steel sheet with reinforcements on the top face. · Rear and front chain curtains for protection. · Coupling to tractor CAT I & II. · Adjustable-in-height side skids. · Three point linkage made of steel tube with tensión chain straps. · Three point linkage made of steel plate with tensión chain straps with hydraulic cylinder for displacement. · Hydraulic hoses with external cover against sratches and protective connections for the fittings during storage. · Rotor with one cutting height level. · Replaceable pins for connecting the chains to the rotor. · PTO shaft with clutch. · PTO to 540 rpm (1”3/8 Z6). · 4 chains. · Optional: rotor assembled with 2 blades. OPTIONS · PTO shaft with free-Wheel · Rear control Wheel · Rotor assembled with blades
