Offset mulcher TG

rear-mounthammervineyard

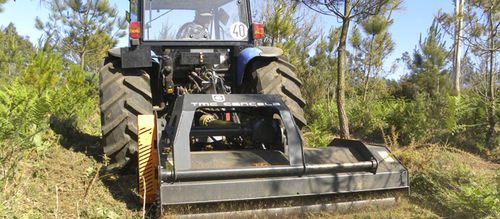

The TG agricultural mulcher is specially designed for all types of mulching, such as mulching pruning cuttings from different crops (fruit trees, vines, olives, etc.) as well as brush and grass… This flail mulcher is available in fixed and offsetting models. The offsetting model has the option of being reversible for connection to the front three point linkage of the tractor. In a nutshell, the TG is a versatile agricultural mulcher ideal for medium-powered farm tractors. TECHNICAL FEATURES FIXED BASE MODEL · Welded frame made of high strength steel and fixed three point linkage with two positions · Sidestep system in frame sideways · Front plates for protection · Coupling to tractor Cat. I & II · Fixed side skids · Removable rear rake adjustable in height outside rear roller for adaptation to the ground SHIFTING BASE MODEL · Welded frame made of high strength steel with hydraulically offset three point linkage · Hydraulic hoses with external cover against sratches and protective connections for the fittings during storage · Rotor assembled with floating hammers · Hammers assembled to the rotor with Ø20 mm bolts · 4 drive belts · Gearbox with integrated free-wheel and input to 540 or 1000 rpm (1”3/8 Z6) · PTO to 540 and 1000 rpm (interchangeable pulleys DS system) · Hammers A02 model · Replaceable counterblades C01 model OPTIONS · Picks for rear rake · Configuration for input speed to 540 rpm / 1000 rpm · Chains curtains for protection
