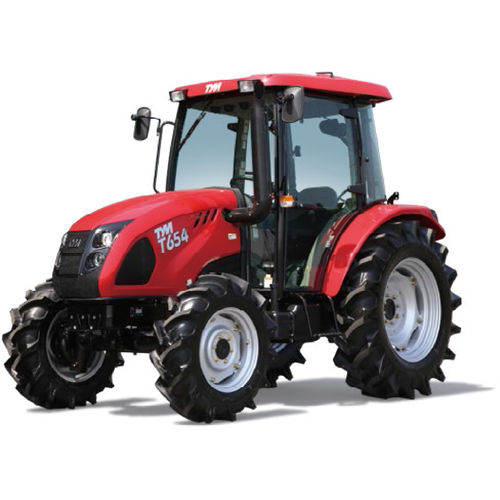

Utility tractor T654 series
power shuttlewidewith cab

utility tractor
utility tractor
utility tractor
utility tractor
utility tractor
utility tractor
utility tractor
Add to favorites
Compare this product


Characteristics

Type
utility
Transmission
power shuttle
Other characteristic
wide, with cab, front PTO
Engine power

67 ch
(67 hp)

Wheelbase

2,150 mm
(84.6 in)

PTO speed

540 rpm, 750 rpm, 1,000 rpm
(3,392.9 rad.min-1, 4,712.4 rad.min-1, 6,283.2 rad.min-1)

Maximum speed

Min.: 0 km/h
(0 mph)

Max.: 39 km/h
(24.2 mph)

Fuel tank capacity

70 l
(18.5 gal)

Total length

3,952 mm
(155.6 in)

Total height

2,545 mm
(100.2 in)

Weight

2,520 kg
(5,555.6 lb)

Description

Say hello to an all-new Deutz engine with improved emissions standards and more-than-enough horsepower for whatever lies ahead. ENGINE & FUEL Reliable, powerful and rugged 67 gross horsepower with maximum fuel efficiency. 70 liter tank provides long operation hours. GEAR The transmission offers 4 main speeds and 3 range speeds + creeper for a total of 24 forward and 24 reverse speeds, enabling you to select the right speed for better productivity. Rugged front axle that delivers an extremely tight turning radius with full power transfer to the wheels at every steering angle. CONVENIENCE Makes turning easier, improves control and reduces fatigue. Category Ⅱ with a hitch lift capacity of 1,937kg allows usage of a wide variety of implements. Auxiliary Cylinder (Optional) Telescopic lower link permits fast and easy implement attachment. PTO On/Off Switch turn the independent rear or mid PTO on or off with the simple and easy turn of a switch. Allows you to perform all loader function with joystick lever. Allows for easy access for daily service checks and maintenance. The digital instrument panel provides a clear display for engine errors, gas gauge, as well as speed(rpm). Provides excellent entry and exit from the both side doors. A spacious cabin provides a more operating room and greater visibility with Air Conditioning/Heating system. Full flat deck layout with rubber mat provides more room for the feet and improves operator's comfort. Suspension seat keeps you comfortable even during long operations. Two sets of rear remote valves for various rear implements.
