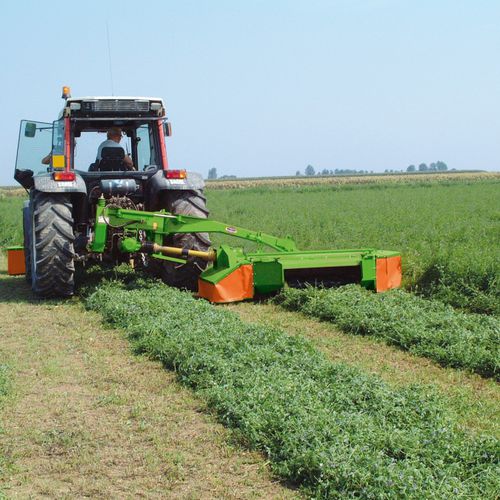

Mounted mower POLARIS
discflail16 blades

mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
mounted mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
disc, flail
Number of blades
16 blades, 12 blades, 14 blades
Number of discs
7 discs, 8 discs, 6 discs
Other characteristic
PTO-driven, folding, with conditioner
Working width

242 cm, 284 cm, 318 cm
(95.28 in, 111.81 in, 125.2 in)

Power required

Max.: 71 kW
(96.5 hp)

Min.: 53 kW
(72.1 hp)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

900 kg, 980 kg, 1,060 kg, 1,090 kg, 1,160 kg
(1,984.2 lb, 2,160.5 lb, 2,336.9 lb, 2,403 lb, 2,557.4 lb)

Description

Central suspension mowers and mower-conditioners – Flat and well-profiled cutterbar with oil-bath gears made of hard-wearing steel – round shaped discs – mowing unit with oscillating central suspension with a dual-spring shock absorber – cutterbar with anti-wear skids – non stop safety release – hydraulic vertical folding (optional) – flail conditioner with regulation of conditioner intensity (model F and FE) – conditioner with adjustable rubber rollers (model R). 1-Very thick cover (5 mm) with integral reinforcement. This cancels out flexing of the cutting group so as to avoid twisting of the moving parts. 2-Integrated wear protection made of treated steel and with access hole for blade replacement. 3-Main support: mounted in a single block on the cover with 6 bolts that allows separate and simple examination of the gearbox. 4-Bearings with large pitch (30mm) cancel the shear strains on the pinion shaft. THE MOWING UNIT MOUNTED ON A SWINGING CENTRAL SUSPENSION ENSURES: .Regular mowing .High working speed .Easily overcomes obstacles .Minimum blade wear
