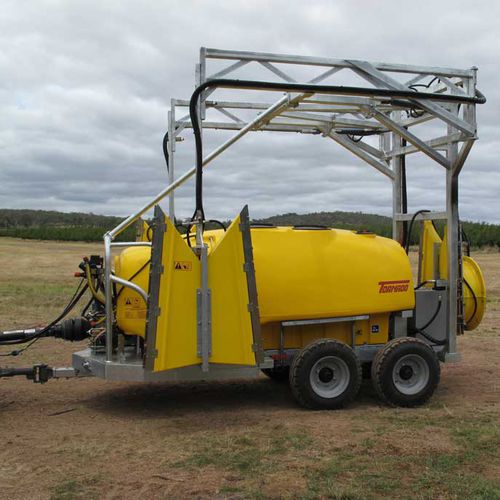

Towed agricultural atomizer TRIS 4000

for viticulturehydraulicwith diaphragm pump

The “Tris system” is specially designed for a medium to large vineyard. This system is 50% faster than the conventional two row machine. Our sturdy low maintenance design is available in 2000,3000 and 4000lt capacity fibreglass or poly tanks. Our sprayer is retrofitted with three, 712mm varipitch hydraulic driven fans with fixed or adjustable air deflectors to penetrate tall and large canopies. The fans are mounted to a fully folding over the row boom complete with height adjustment and a width adjustment of 700mm per side, incorporating breakaway to avoid any major damage. The hydraulic boom and spraying operation is simply achieved by using an in cab set of controls. Features: -Rates from 150-2000lt+ per hectare -Catterin CP165K pump -Wide angle PTO drive shaft -5000-6000kg sprung axle for high speed travel -Large 500×17.5 floatation tyres -Self contained hydraulic system -Low HP required
