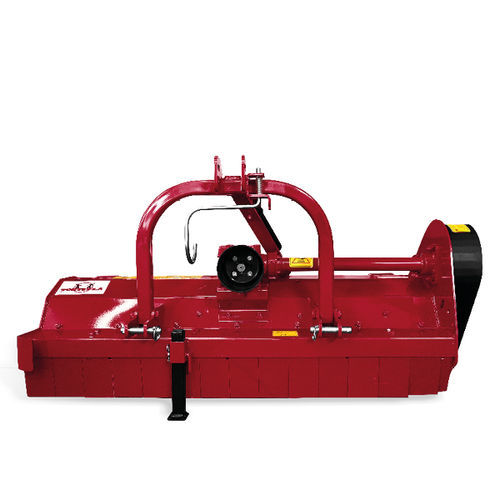

Mounted mulcher TR6 series
hammerblade12 hammers

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, blade
Number of hammers
16 hammers, 12 hammers, 14 hammers, 10 hammers, 8 hammers
Number of knives
32 knives, 24 knives, 28 knives, 20 knives, 16 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Min.: 85 cm
(33.46 in)

Max.: 155 cm
(61.02 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

12 ch, 15 ch, 20 ch, 35 ch
(12 hp, 15 hp, 20 hp, 35 hp)

Weight

Min.: 170 kg
(374.79 lb)

Max.: 275,000 kg
(303.14 lb)

Description

The TR6 series includes all shredders for pruning and grass, suitable for cutting small remains of pruning, brushwood and brambles, as well for grass mowing. They allow to achieve a finely cut and scraped rest also by starting from hard or resinous woods. The machine was designed with a single cover to meet the needs of users who do not require special performance. STANDARD EQUIPMENT •CE safety device •Oil quenched running wheel in gearbox •Smooth hammers •Counterplates for hammers •Support leg •Selfcleaning rear roll with three set-up positions •Front safety flags •Power take-off P.T.O.540 rpm •3 – belt OPTIONAL REQUESTS: •Cardan joint •Blades in place of smooth hammers •2 point linkage bracket •Jags for wood collection •Double cover and openable front door for the only maintenance •Gearbox Bondioli & Pavesi •2 saddles •2 fixed iron wheels in place of the roll •2 fixed rubber wheels in place of the roll •2 steering iron wheels in place of the roll •2 steering rubber wheels in place of the roll

Catalogs

SHREDDERS
SHREDDERS
32 Pages
