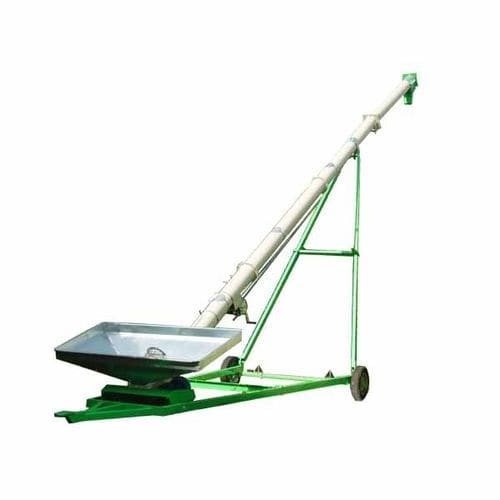

Grain elevator

screwmobileinclined

12m long, foldable in 9m. Good mobility with a perfect balance point. In hot galvanized tubes (robustness and longevity). Easy to use and requires very little maintenance. TOY Group’s multiple trolley screws make it an irreplaceable work tool. Screws on TOY Group trolley Made with all the know-how of the TOY group, with a total length of 12m ‘9m plus a 3m folding element). They are easily moveable with a perfect balance point. In hot galvanized tubes of 3mm thickness ensuring robustness and durability. Intermediate bearings with bronze graphity rings require no maintenance or greasing. The winch is multiplied allows for effortless height adjustment. The 2mx1m galvanized hopper is equipped with a grid that prevents the passage of foreign objects and a flow control hatch. The chassis is equipped with 145/13 pneumatic wheels (speed 25km/h) giving it stability on the road. The 7.5kw engine gives it an optimum power and flow of about 55m3 (likely to vary depending on the PS and the humidity of the cereal). The quickly removable arrow prevents manoeuvres around the hopper. TOY Group screws on trolley are provided with a waterproof box equipped with a rotational inverter (for quick and effortless unwinding and also allows the screw to be emptied in full in case of a change of grain). Our screws also come with several options and can be fitted with a rear light ramp; an orientable output and even a chassis reinforcement for intensive use (e.g. CUMA). Length 12 meters / folding Available in diameter 200, motorization 7.5kW Flow of about 55m3/hour Options: Rear-fire ramp Reclining output Reinforced chassis for intensive use (CUMA…)
