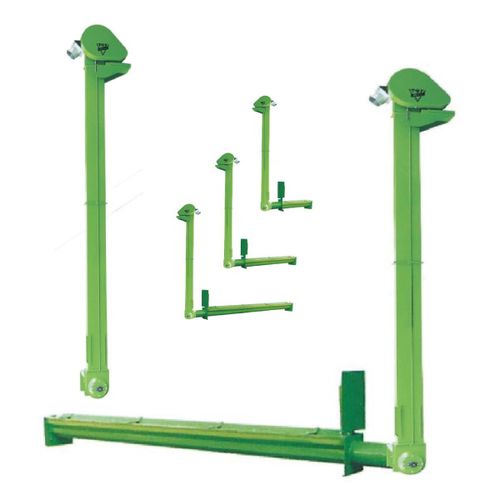

Grain elevator

paddle beltscrew

For grain transfer and flour transport. Epoxy paint finish steel or hot galvanized (optional). Height from 3 to 12M. Work vertically or at 45 degrees. Chain-fixed pallets / all-wheel drive. Motorization: from 1.5kW to 4 kW conveyor belt pulley. Several types of legs: left or right (at 90 degrees) / lengths: 350mm,1500mm,3000mm. Very simple assembly, space-saving, adapts to confined sites (low pitch of the foot and head). Robust construction. Maximum speed of 200qx/hour in cereals. TOY Group pallet lifts: made of epoxy painted steel or hot galvanized (optional). Intended for the transfer of cereals or the transport of flour. The big advantage of our product is that it can work both vertically and 45 degrees tilt. The pallets are attached to a chain that provides all-wheel drive. The engine is provided by a conveyor belt pulley transmission and engine power ranges from 1.5kW to 4 kW. The elevator is offered with various types of legs: left or right (at 90 degrees compared to the output of the product) and different lengths: 350mm,1500mm,3000mm. They also come with a conical screw that can be fitted with a tuning valve. Very simple to assemble because of its single-driver partitioned inside, it is small and adapts in small places (low height of the foot and head). With a minimum of 3 m height and a maximum of 12 m height of robust construction and a maximum flow of 200qx/hour in cereals, René TOY paddle lift is an excellent equipment with a very affordable price. Height from 3 to 12 meters From 1.5 kW to 4 kW Power, product and foot length: 200 Qx/hour Taken back into the pit by conical screw 6 types of feet available: short/medium/long/right or left
