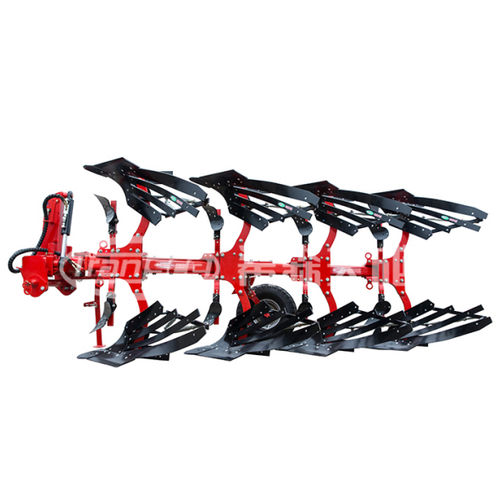

1LF-450 Turnover plow is used for potato tillage and land preparation machinery, can be completed loose soil, weeding, and other operations. The hydraulic tumbling plow is used by the tractor to support the movements of the plow and the rollover of the plow by the double distributor.
Structure
The hydraulic reversing plow includes a hanger, a tumbler, a retracting mechanism, a ground mechanism, a plow and a plow, and is driven by the telescopic movement of the piston rod in the cylinder to move forward and backward alternately to the work Position; ground wheel is a screw to adjust the depth of a round of dual-use institutions. The pylons are connected with the working host, the plow is connected with the plow frame through the plow column, the plow frame is provided with a ground wheel mechanism, characterized in that the cylinder in the tumbler cylinder is hinged with the cylinder block connected to the plow frame, There is a telescopic movement of the piston rod, fixed on the plow frame with a central axis, in the central axis of the center of the rear sleeve and the piston rod hinge, the front end and fixed on the suspension beam, the piston rod with the cylinder , Plow connection to drive the central axis in the central sleeve to do rotary motion.
1) Large plowing device
There are plow tip, plow shovel, plow neck plate, plow arm, plow brush, stay, adjust the screw combination, plow, plow side plate composition. Plowing through a special heat treatment, especially solid and hard, plowing angle can be adjusted, turning mattress, broken soil, covering performance, resistance is small.
