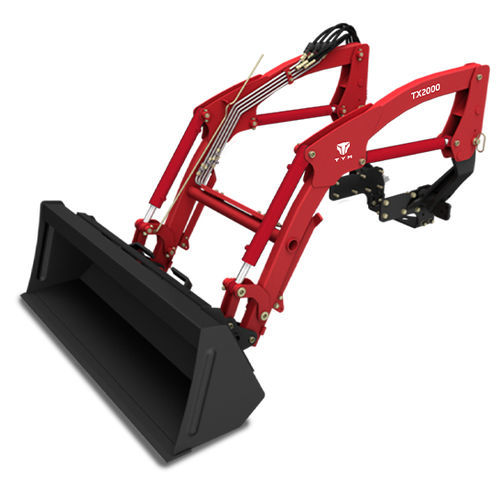

Self-leveling front loader TX2000

for compact tractors

Enhance the functionality of your TYM sub-compact tractor with the TX2000 front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively. Engineered to deliver impressive performance with its enhanced features, the TX2000 front-end loader takes advantage of the power and capabilities of its compatible sub-compact tractor. With impressive dig depth and maximum rollback angle, you can handle materials more securely. Perform intense tasks without losing stability with TX2000’s impressive lift capacity and breakout force. Built with self-levelling features installed, the TX2000 front-end loader can help you focus on the work and improve your productivity. Capacities & Reach Max. lift height under level bucket:2081 mm (81.9 in.) Clearance with bucket dumped:1641 mm (64.6 in.) Reach at maximum lift height:553 mm (21.8 in.) Max. dump angle:53° Reach with bucket on ground:1487 mm (58.5 in.) Max. rollback angle:30° Digging depth:82 mm (3.2 in.) Breakout force at ground level, pivot points:934 kgf (2059 lb) Bucket rollback force at ground line:724 kgf (1596 lb) Bucket capacity:0.18 cu. m (6.4 cu. ft) Self leveling:NA Relief valve setting (Loader control valve):160 kg/sq. cm (2276 psi) Dimensions & Weights Overall height in carry position:1170 mm (46.1 in.) Depth of Attachment (to the back of the inner shell):423 mm (16.7 in.) Height of Attachment:484 mm (19 in.) Length of Attachment (to pivot point):592 mm (23.3 in.) Weight of boom & quick attach mechanism (1):165 kg (363.8 lb) Weight of mounting frame (2):53 kg (116.8 lb)
