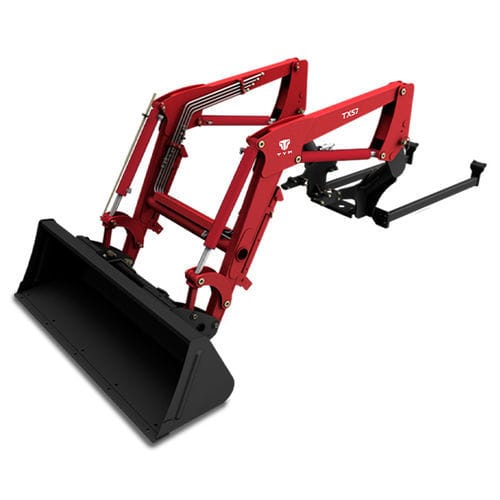

Self-leveling front loader TX57

for compact tractors

The TX57 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX57 front-end loader can help you get your tasks done more efficiently. Built for durable performance and excellent dig capabilities, the TX57 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX57 front-end loader is ideal for more heavy duty applications. Capacities & Reach Lift height:2780 mm (109.4 in.) Max. lift height under level bucket:2566 mm (101 in.) Clearance with bucket dumped:2123 mm (83.6 in.) Reach at maximum lift height:447 mm (17.6 in.) Max. dump angle:50° Reach with bucket on ground:1815 mm (71.5 in.) Max. rollback angle:35° Digging depth:140 mm (5.5 in.) Lift capacity:1266 kgf (2790 lb) Breakout force at ground level, pivot points:2411 kgf (5316 lb) Bucket rollback force at ground line:1976 kgf (4356 lb) Bucket capacity:0.32 cu. m (11.3 cu. ft) Self leveling:NA Relief valve setting (Loader control valve):175 kg/sq. cm (2489 psi) Dimensions & Weights Overall height in carry position:1442 mm (56.8 in.) Depth of Attachment (to the back of the inner shell):537 mm (21.1 in.) Height of Attachment:519 mm (20.4 in.) Length of Attachment (to pivot point):694 mm (27.3 in.) Weight of boom & quick attach mechanism (1):243 kg (535.7 lb) Weight of mounting frame (2):142 kg (313 lb) Weight of bucket (3):123 kg (271.2 lb)
