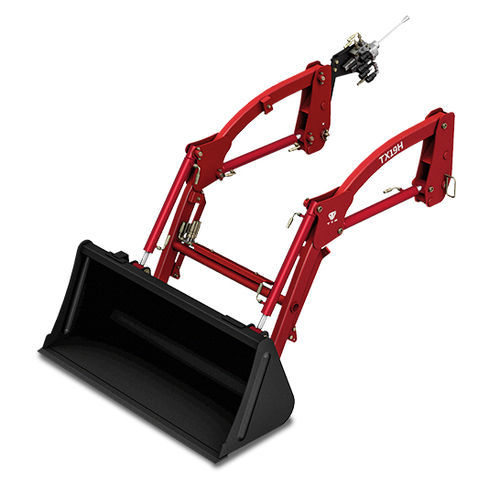

Self-leveling front loader TX19H

for compact tractors

Enhance the functionality of your TYM sub-compact tractor with the TX19H front-end loader. With impressive lift capacity and height, this TYM front-end loader can help you lift, move and handle material more effectively. Engineered to deliver impressive performance with its enhanced features, the TX19H front-end loader takes advantage of the power and capabilities of its compatible sub-compact tractor. With impressive dig depth and maximum rollback angle, you can handle materials more securely. Perform intense tasks without losing stability with TX19H’s impressive lift capacity and breakout force. Built with self-levelling features installed, the TX19H front-end loader can help you focus on the work and improve your productivity. Capacities & Reach Max. lift height under level bucket:1646 mm (64.8 in.) Clearance with bucket dumped:1369 mm (53.9 in.) Reach at maximum lift height:680 mm (26.8 in.) Max. dump angle:37° Reach with bucket on ground:1258 mm (49.5 in.) Max. rollback angle:23° Digging depth:105 mm (4.1 in.) Breakout force at ground level, pivot points:560 kgf (1235 lb) Bucket rollback force at ground line:470 kgf (1036 lb) Bucket capacity:0.16 cu. m (5.7 cu. ft) Self leveling:NA Relief valve setting (Loader control valve):130 kg/sq. cm (1849 psi) Dimensions & Weights Overall height in carry position:1068 mm (42 in.) Depth of Attachment (to the back of the inner shell):484 mm (19.1 in.) Height of Attachment:467 mm (18.4 in.) Length of Attachment (to pivot point):525 mm (20.7 in.) Weight of boom & quick attach mechanism (1):92 kg (202.8 lb) Weight of mounting frame (2):46 kg (101.4 lb)
