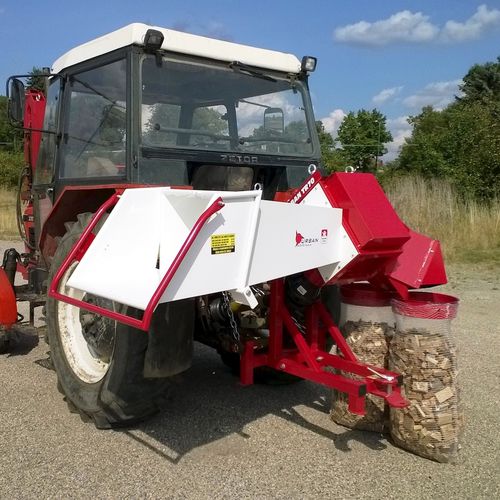

Hydraulic wood splitter TR70 2P

horizontaltractor-mountedPTO-driven

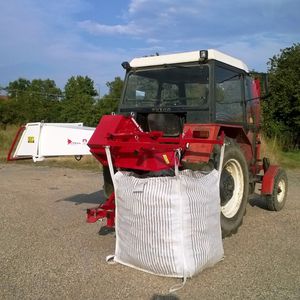

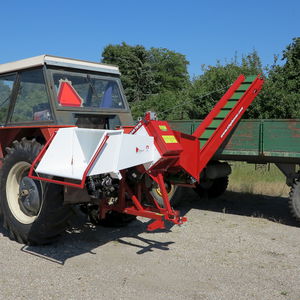

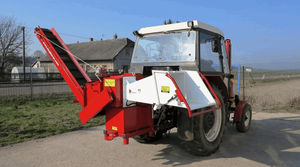

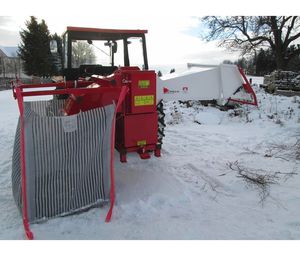

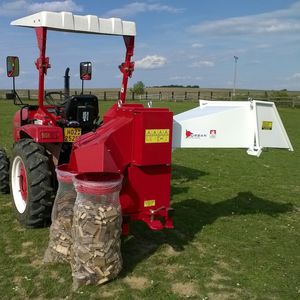

The branch logger URBAN TR70 is supported on the three-point hitch of the tractor. The optimum tractor power is 50 hp and more, the minimum power is 30 hp. The drive must be secured through a cardan with overload clutch (not part of the machine - you will find it in the accessories section). To reduce the impacts transmitted to the cardan and to the gearbox of the tractor we use a flywheel, which can be ordered as an accessories. UP TO DIAMETER 80 MM Part of the machine is: 50 pcs of raschle bags, safety chains, tow hitch with tow ball ISO50, operators manual including declaration of conformity. Technical parameters Weight:250 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mm Log length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Top performance:60 bags per hour Category of 3-point hinge:1 a 2 PTO max. rotation speed:540 / min. Power of tractor (min.):30 hp Power of tractor (recommended):50 hp and more Adjustable (telescopic) frame of logger:Yes - 3 positions Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Overload protection:Overload clutch Dimensions in transport position (length x width x height):100 x 179 x 133 cm Dimensions in working position (length x width x height):100 x 225 x 133 cm Packaging dimensions (length x width x height):100 x 179 x 148 cm Logs output:Double bagging
