Hydraulic wood splitter TR110 2P

horizontaltractor-mountedPTO-driven

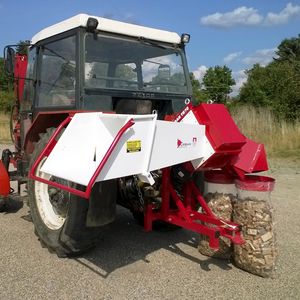

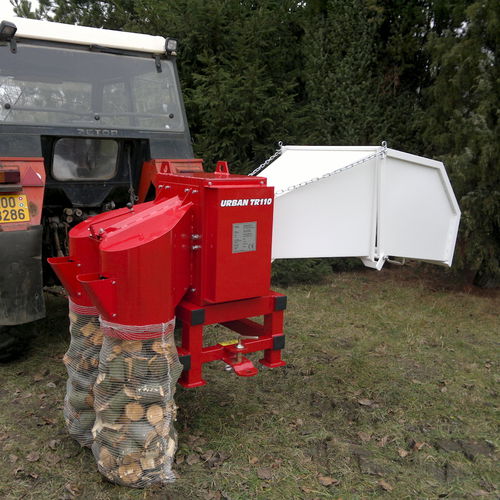

The branch logger URBAN TR110 is lifted on the three-point tractor hitch. The optimum tractor power is 70 hp and more, the minimum power is 50 hp. The tractor power is transferred by a PTO with an overload clutch (it is a part of the machine) to the oil filled gearbox, which drive the logging device. To reduce the impacts transmitted to the cardan and to the gearbox of the tractor it is used a flywheel, which can be ordered as accessories. The performance of TR110 compared to TR70 and TR75 machines is significantly faster because it can be inserted bigger diameter or bigger amount of smaller branches at a time. UP TO DIAMETER 120 MM Part of the machine is: 50 pcs of raschle bags, cardan with friction overload clutch, safety chains, tow hitch with tow ball ISO50, operators manual including declaration of conformity. Technical parameters Weight:670 kg Max. diameter of soft freshwood (pine):120 mm Max. diameter of fresh hardwood (oak, hornbeam):100 mm Max. diameter of dry hardwood (oak, hornbeam):80 mm Max. diamensions of block of wood (spruce):100 x 100 mm Max. diameter of wooden board (spruce):280 x 40 mm Log length (not adjustable):7 - 22 cm Logging device inlet dimensions:290 x 290 mm Inlet hopper dimensions:800 x 600 mm Top performance:80 bags per hour Category of 3-point hinge:2 PTO max. rotation speed:1000 / min.Power of tractor (min.):50 hp Power of tractor (recommended):70 hp and more Adjustable (telescopic) frame of logger:Yes - 3 positions Sliding legs:YesNumber of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:150 - 800 m3 of of small logsOverload protection:Overload clutch
