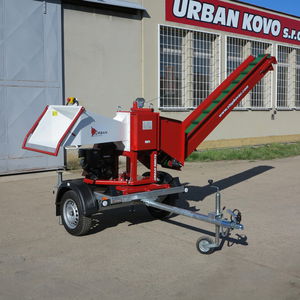

Gasoline engine wood splitter SM70 2P

horizontalwheeledmachine

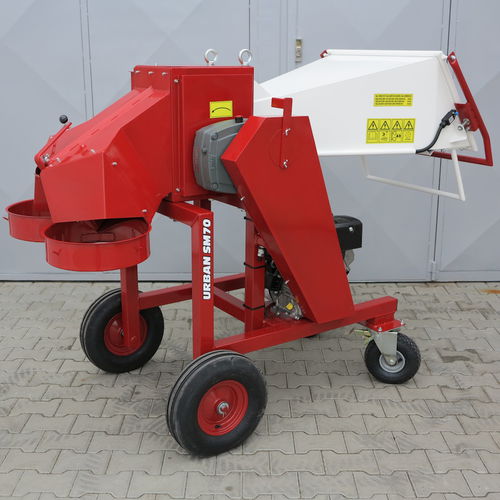

The Branch Logger URBAN SM70 is driven by a 10 hp Briggs & Stratton VANGUARD engine. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The logger has 4 wheels for manual handling (2 fixed and 2 swivelling with brakes). UP TO DIAMETER 80 MM Part of the machine is: 50 pcs of raschle bags, operators manual including declaration of conformity. Technical parameters Weight:320 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mmLog length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Blade rotation speed (rpm):200 / min. Top performance:4 m3/h Engine power:7,5 kW (10 hp) Fuel:Unleaded fuel (95) Fuel tank volume:4 l Average gas consumption:1 - 1,5 l/h Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Chassis:4 castors - manual handling Overload protection:Belt slip Dimensions (length x width x height):205x97x159 cm Logs output:Double bagging Extended description The engine The SM70 is driven by a four stroke 10 hp Briggs & Straton VANGUARD engine, with pull cord or optional electric starter. The engine´s output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The fuel tank capacity is 4 litres. Upon request, a logger can be equipped by hour meter
