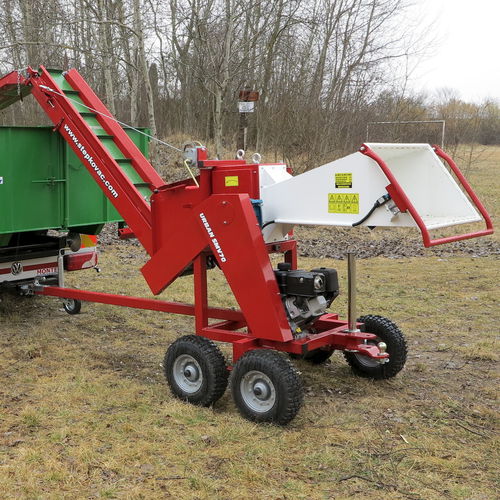

Gasoline engine wood splitter SMV70 D2,1

horizontalwheeledmachine

The Branch Logger URBAN SMV70 is powered by a 10 hp Briggs & Stratton VANGUARD engine. The power is transmitted from the engine by the V-belts on an oil-filled gearbox which drives the logger. The SMV70 features an offroad chassis with independent pivoting axles. UP TO DIAMETER 80 MM Part of the machine is: tow hitch with tow ball ISO50, operators manual including declaration of conformity. Technical parameters Weight:440 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mm Log length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Blade rotation speed (rpm):200 / min. Top performance:4 m3/h Engine power:7,5 kW (10 hp) Fuel:Unleaded fuel (95) Fuel tank volume:4 l Average gas consumption:1 - 1,5 l/h Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Chassis:Off-road (without license plate) Overload protection:Belt slip Dimensions in transport position (length x width x height):222x141x290 cm Dimensions in working position (length x width x height):Depends on conveyor position Packaging dimensions (length x width x height):311x141x250 cm Length without towing bar:203 cmLogs output:Conveyor 2,1 m Conveyor drive:V-belt drive Height of the end of conveyor at angle of 30°:181 cm Height of the end of conveyor at angle of 40°:211 cm Hinge for trailer:Yes - classic + ISO ball
