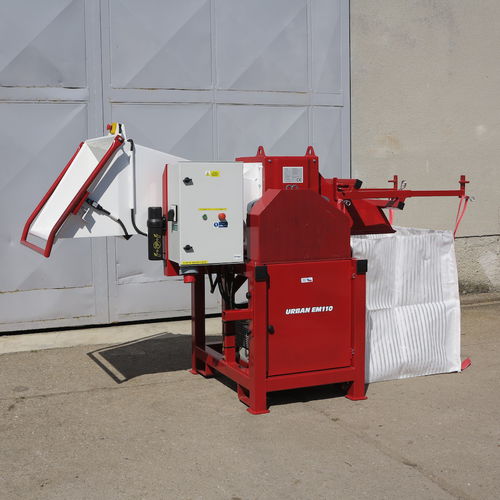

Electric wood splitter EM110 BB

horizontalstationarymachine

The branch logger URBAN EM110 is driven by a three phase 18,5 kW electric motor SIEMENS (connects to a 63 A socket). Also available with a 15 kW electric motor at customers request (32 A socket). The motors output is transferred via V-belts to the oil filled gearbox which drives the blade rotors. The EM110 can handle a larger branch diameter than EM70. This model is very ideal for processing waste material (boards up to width 280 mm, cut-offs) and also smaller stems up to 12 cm diameter. The final length of chips is 7 -22 cm. UP TO DIAMETER 120 MM Part of the machine is: operators manual including declaration of conformity. Technical parameters Weight:934 kg Max. diameter of soft freshwood (pine):120 mm Max. diameter of fresh hardwood (oak, hornbeam):100 mm Max. diameter of dry hardwood (oak, hornbeam):80 mm Max. diamensions of block of wood (spruce):100 x 100 mm Max. diameter of wooden board (spruce):280 x 40 mm Log length (not adjustable):7 - 22 cm Logging device inlet dimensions:290 x 290 mm Inlet hopper dimensions:800 x 600 mm Blade rotation speed (rpm):160 / min. Top performance:10 m3/h Engine power:18,5 kW (socket 63 A) Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:150 - 800 m3 of of small logs Overload protection:Slip + thermal protection Dimensions in transport position (length x width x height):254x126x178 cm Dimensions in working position (length x width x height):297x126x178 cm Logs output:Big-Bag bagging Extended description The electric motor The branch logger URBAN EM110 is driven by a three phase 18,5 kW electric motor SIEMENS (connects to a 63 A socket).
