Gasoline engine wood splitter SMH70 T D2,6

horizontalwheeledmachine

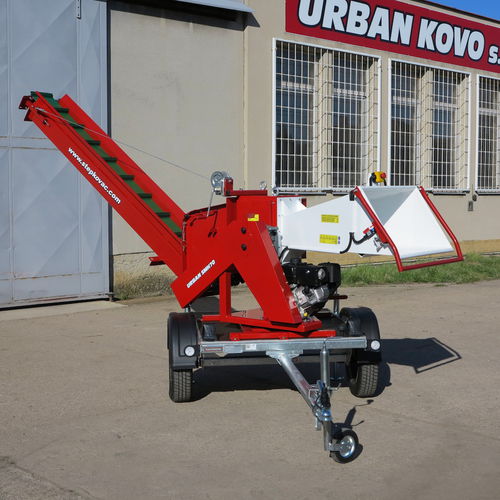

The Branch Logger URBAN SMH70 is powered by a 10 hp Briggs & Stratton VANGUARD engine. The power is transmitted from the engine by the V-belts on an oil-filled gearbox which drives the logger. The logger has road trailer with number plate bracket for easy transport to any place. The branch logger is fixed to a 360° turntable. UP TO DIAMETER 80 MM Part of the machine is: operators manual including declaration of conformity and technical license for trailer. Technical parameters Weight:565 kg Max. diameter of soft freshwood (pine):80 mm Max. diameter of fresh hardwood (oak, hornbeam):65 mm Max. diameter of dry hardwood (oak, hornbeam):50 mm Max. diamensions of block of wood (spruce):60 x 60 mm Max. diameter of wooden board (spruce):190 x 20 mm Log length (not adjustable):6 - 13 cm Logging device inlet dimensions:200 x 200 mm Inlet hopper dimensions:700 x 400 mm Blade rotation speed (rpm):200 / min. Top performance:4 m3/h Engine power:7,5 kW (10 hp) Fuel:Unleaded fuel (95) Fuel tank volume:4 l Average gas consumption:1 - 1,5 l/h Number of logging blades:6 The gap between the blade of the cutting blades:approx. 0,1 mm Lifetime of blades per one grinding:100 - 500 m3 of small logs Chassis:Road with license plate Overrun brake:No Turn between the logger and the trailer:Yes - 8 positions at 45 ° Overload protection:Belt slip Dimensions (length x width x height):311x153x340 cm Packaging dimensions (length x width x height):385x153x250 cm Length without towing bar:205 cm Logs output:Conveyor 2,6 m Conveyor drive:V-belt drive Height of the end of conveyor at angle of 30°:206 cm Height of the end of conveyor at angle of 40°:243 cm
